Disaster Relief Shelter
Lockable doors increase security and the composite panels add a greater level of thermal and acoustic comfort and privacy. The internal living space is over 16m² with a 2m canopy at the front. Walls divide the sleeping areas from the living area. Extra arch modules can be added or taken away depending on requirements. Solar panels, printed onto the panels, are used to power low energy lighting, phone charging and Wi-Fi hubs. Windows are set at a high level to maintain privacy and maximise natural light inside. They can be opened to help with air circulation and temperature control. 5v switch film turns them opaque at a press of a button.
![Cut Away View](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/dd16be51-31be-4e3f-97ec-7c1476642f88_rw_1920.jpg?h=02194573a3dffc8bd103c90879fe546f)
Cut Away View

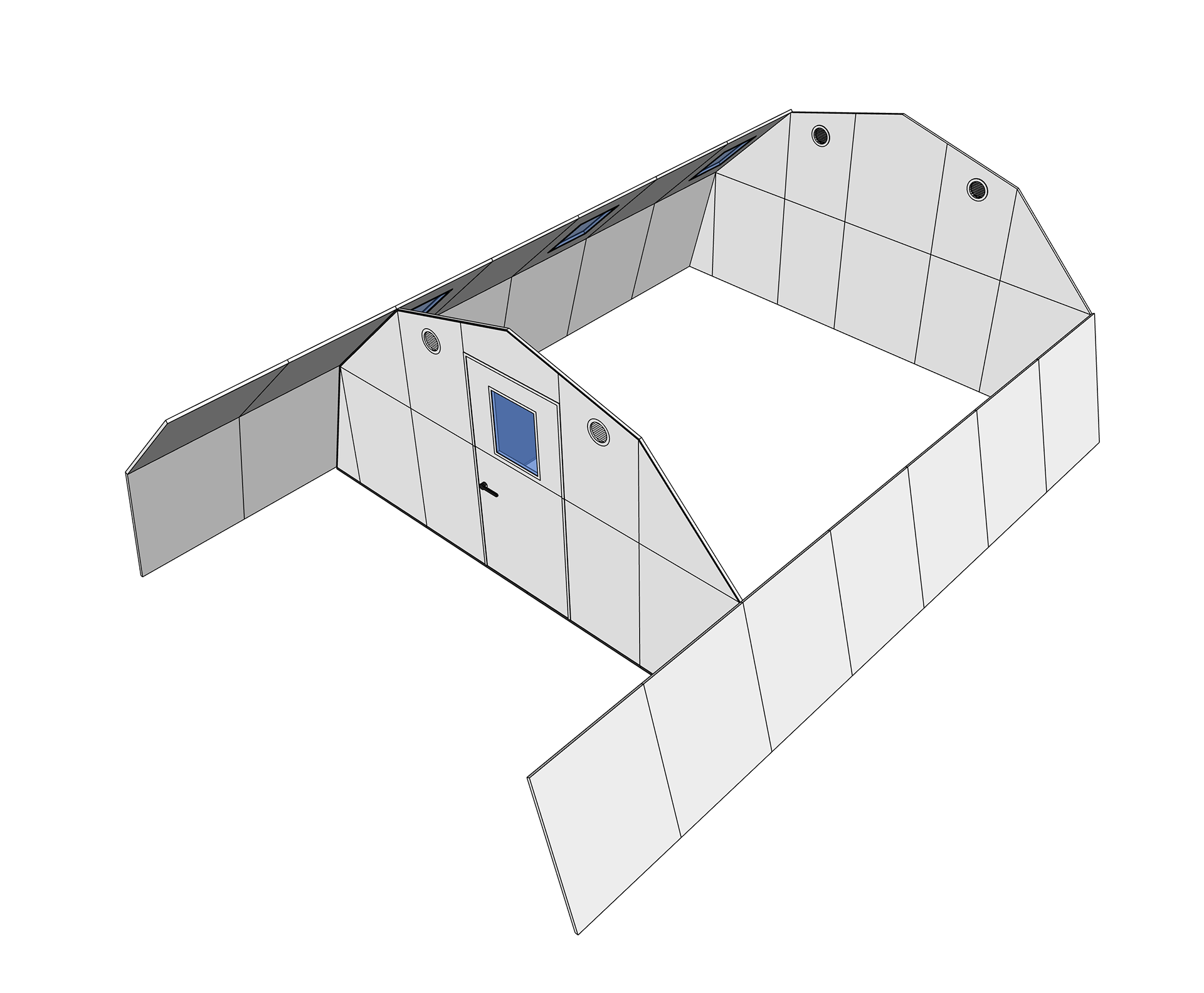

![Cut Away Top View](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/4bf0b1c4-1d7e-4da9-a9d1-f6f8abe720f8_rw_1920.jpg?h=79d4623f44dcf02afc2e4d0f63bced32)
Cut Away Top View

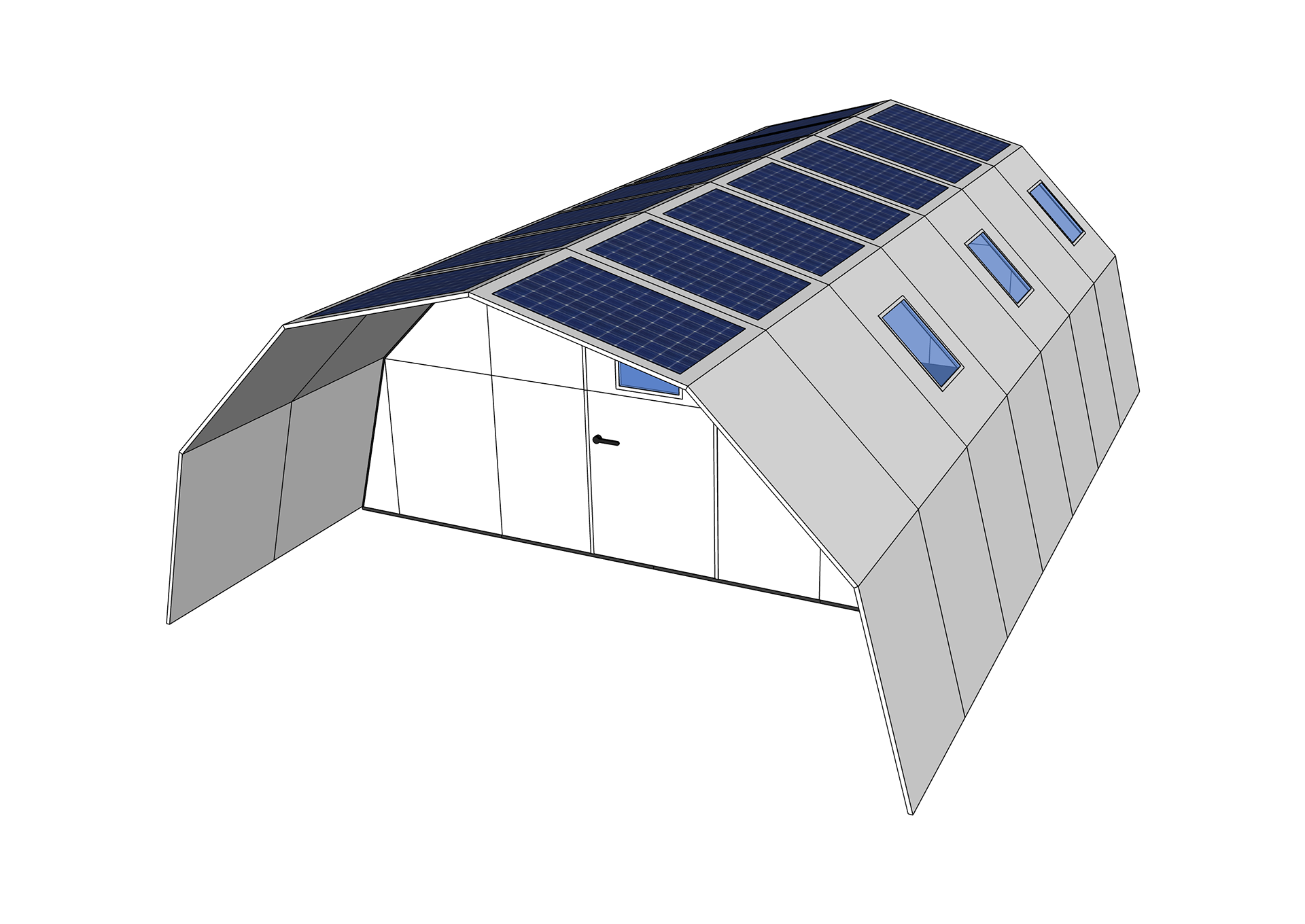

![Complete Shelter](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/db8dbead-892b-48e2-91fe-5bd1eb43d9eb_rw_1920.jpg?h=a5f52cec0ece292d8b37c9242abd6c22)
Complete Shelter
Construction Method

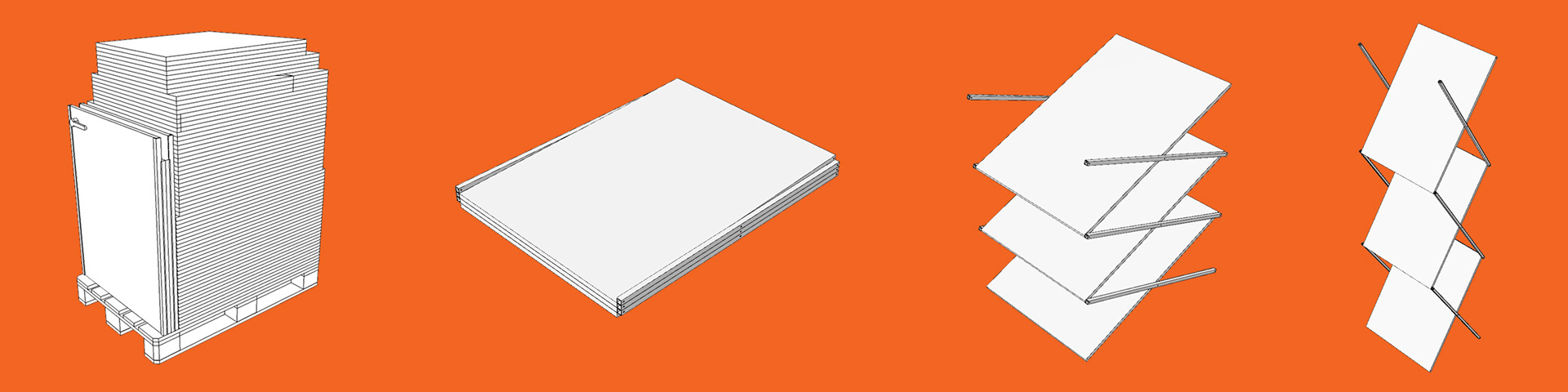

The panel arches are delivered folded flat on a Euro pallet and unfolded into individual arches.

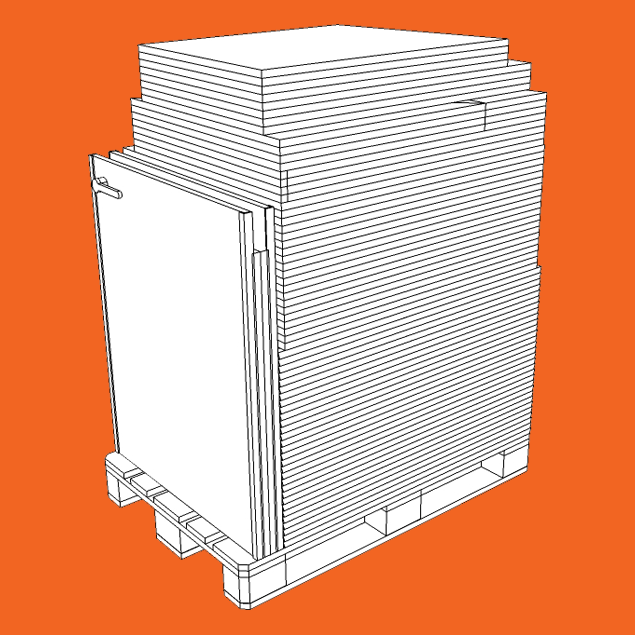

![Folded Arch Modules On A Euro Pallet](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/b4667afb-26c9-420b-af8a-ceaf437c8f4c_rw_1200.png?h=df3a537cf0e86436b4153a41bb1f43ed)

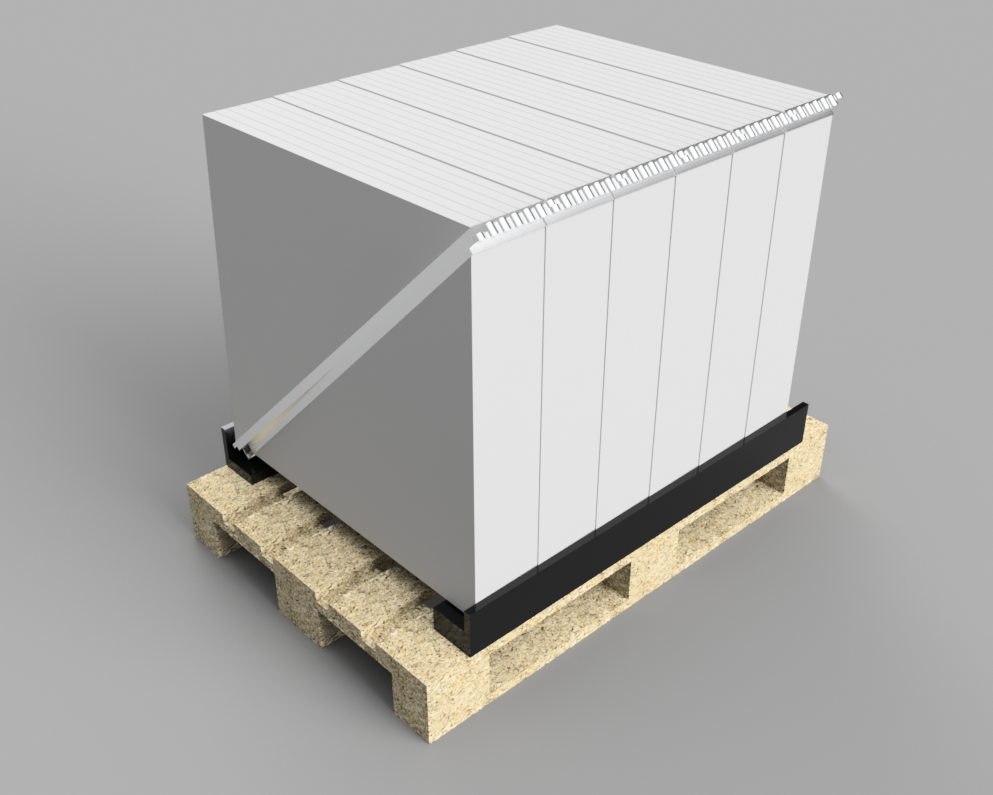

Folded Arch Modules On A Euro Pallet

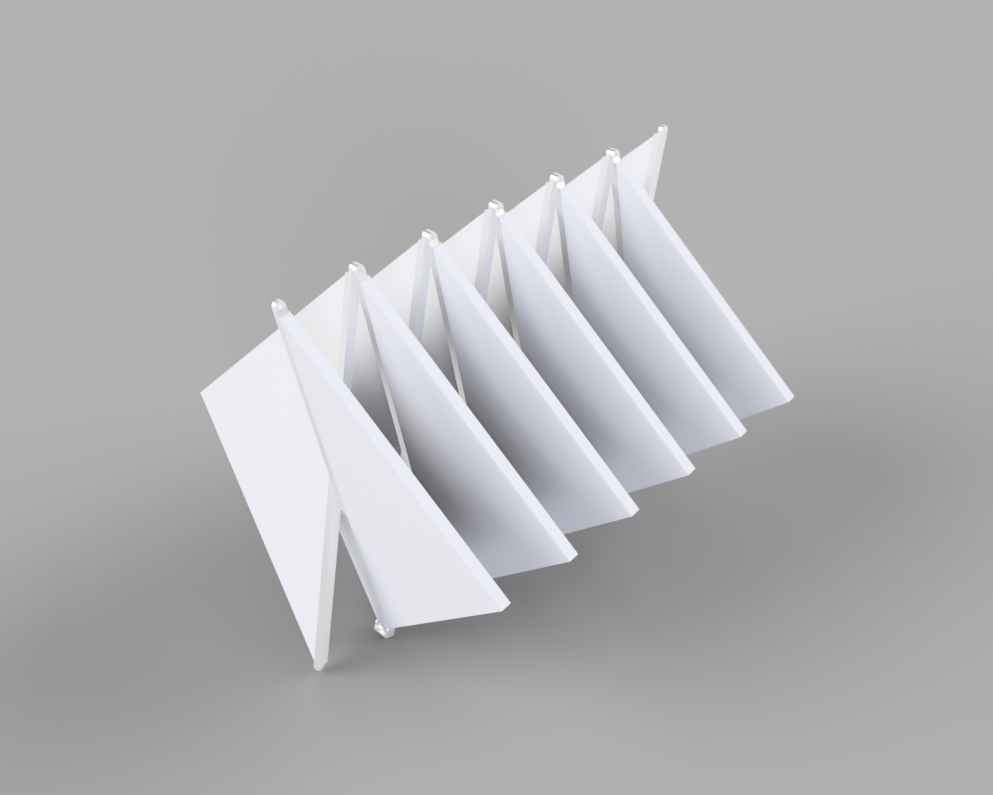

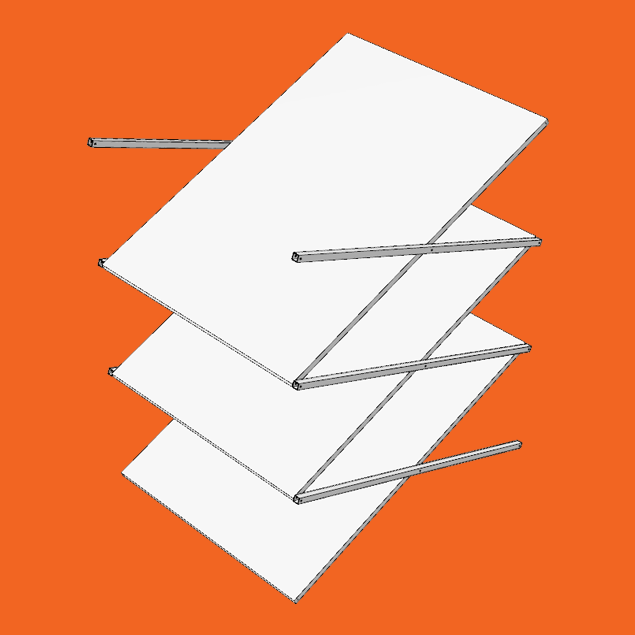

![Arch modules Part Unfolded](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/b0bf6fd4-a109-4bf6-9bb4-d7c5379f38a0_rw_1200.png?h=52e1ad6e215f642ef2cd85106be52f8b)
Arch modules Part Unfolded

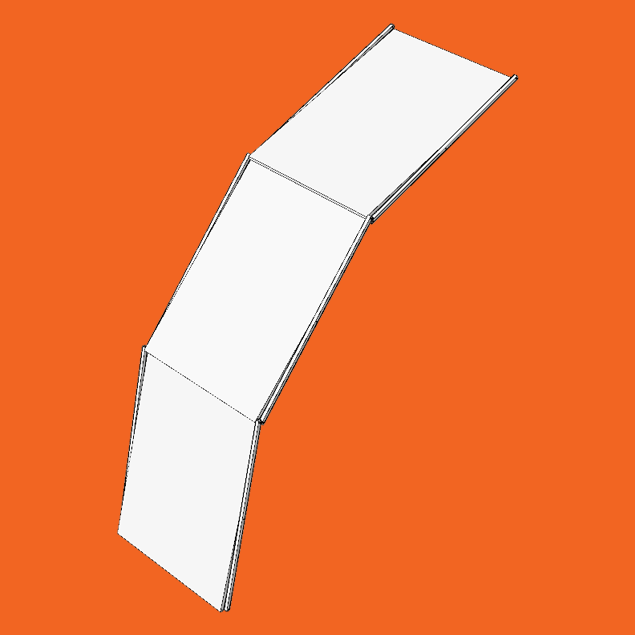

![Arch Modules Fully Unfolded](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/889cda65-4a5c-459a-9e2b-3e0c1117ada2_rw_1200.png?h=e7a2977cd3fd33cfd6813c3163e0a59e)
Arch Modules Fully Unfolded

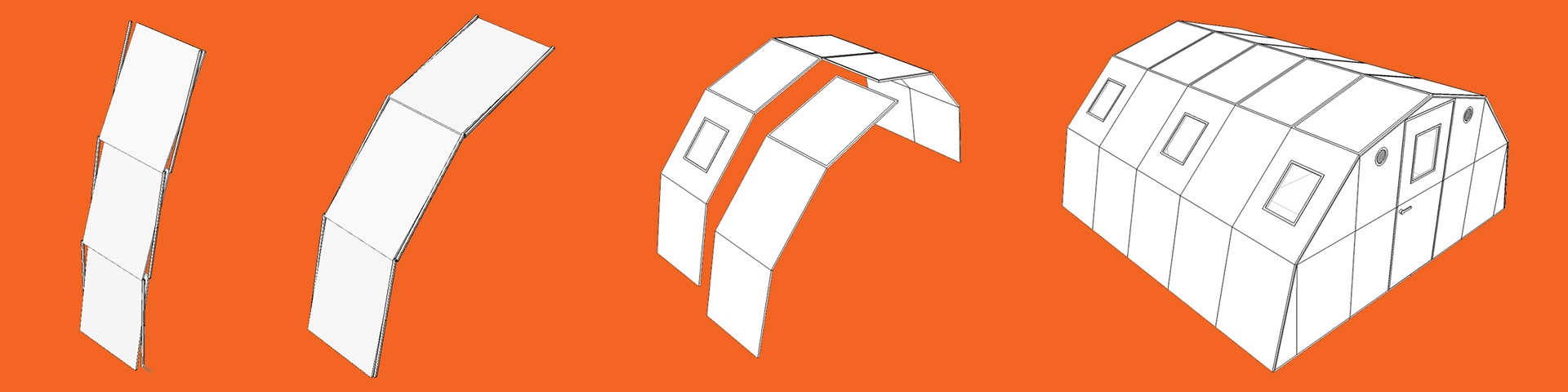

The unfolded arches are then joined together in sections. In doing so, they form a strong structure made up of triangles, squares or rectangles depending on shelter type. The arch modules are easily added or taken away depending on the intended end use.

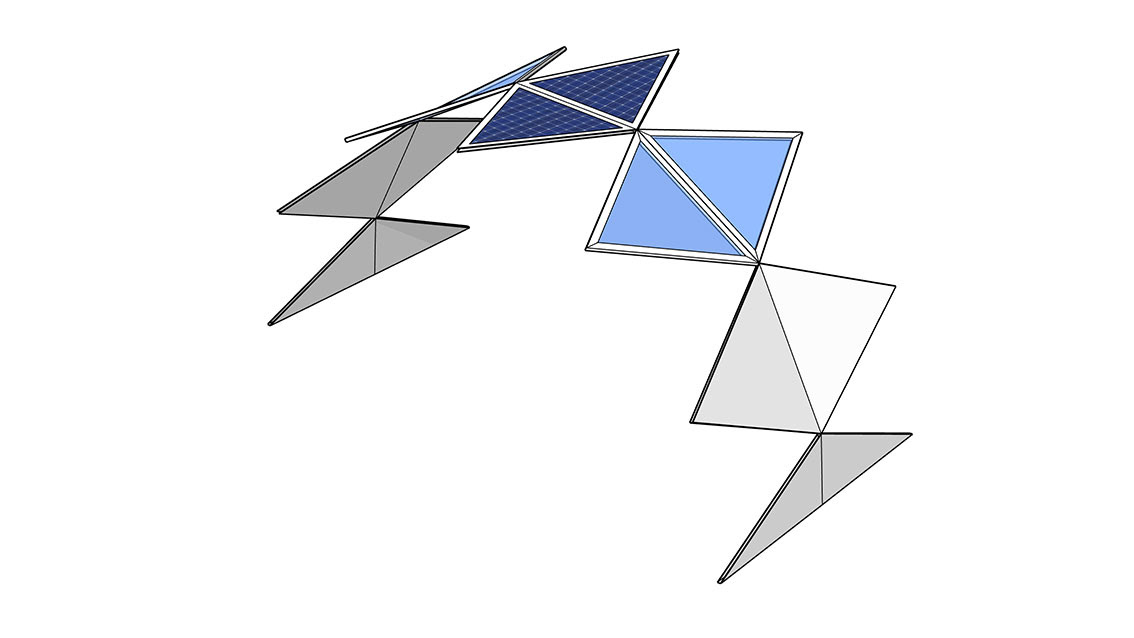

![Arch Module Unfolded](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/18073350-4378-4114-83e7-06afee174e86_rw_1200.jpg?h=d01eba70e56e974e36945fd95fbe60fe)
Arch Module Unfolded
![End Arch Module Unfolded](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/259565a0-1aa0-493e-bcae-ee2542df95df_rw_1200.jpg?h=a45cefeac8f2f0dfa5d83234f484abc6)
End Arch Module Unfolded
![Both Arch Modules Connected](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/e0686f84-9e57-4299-b65a-91e2b2e3b9f9_rw_1200.jpg?h=bcad6becba723d0363e87412ac4ed79c)
Both Arch Modules Connected
![Extra Arch Module Unfolded](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/207ba936-47ee-4de1-9996-4c92a2f088ba_rw_1200.jpg?h=75625db4a5b040182bf41ca68ea416cf)

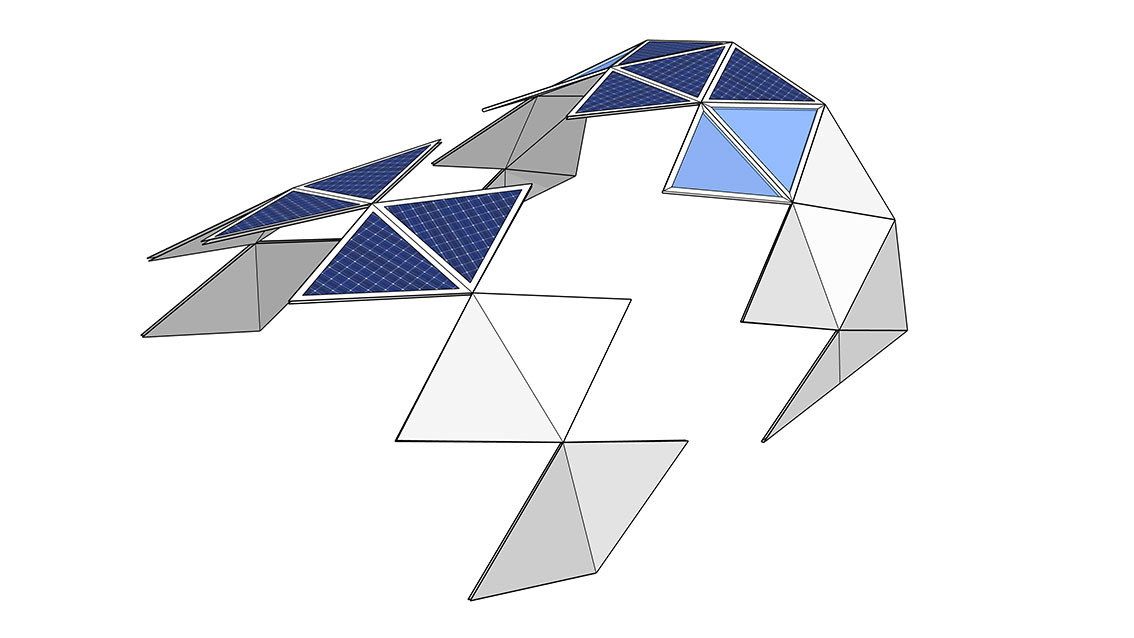

Extra Arch Module Unfolded
![Extra Arch Module Connected To Others](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/e6590a8a-68ea-433a-8cc8-b1ecc11a1985_rw_1200.jpg?h=3f9bbe3611d011977b170cfc8ba39fc9)
Extra Arch Module Connected To Others

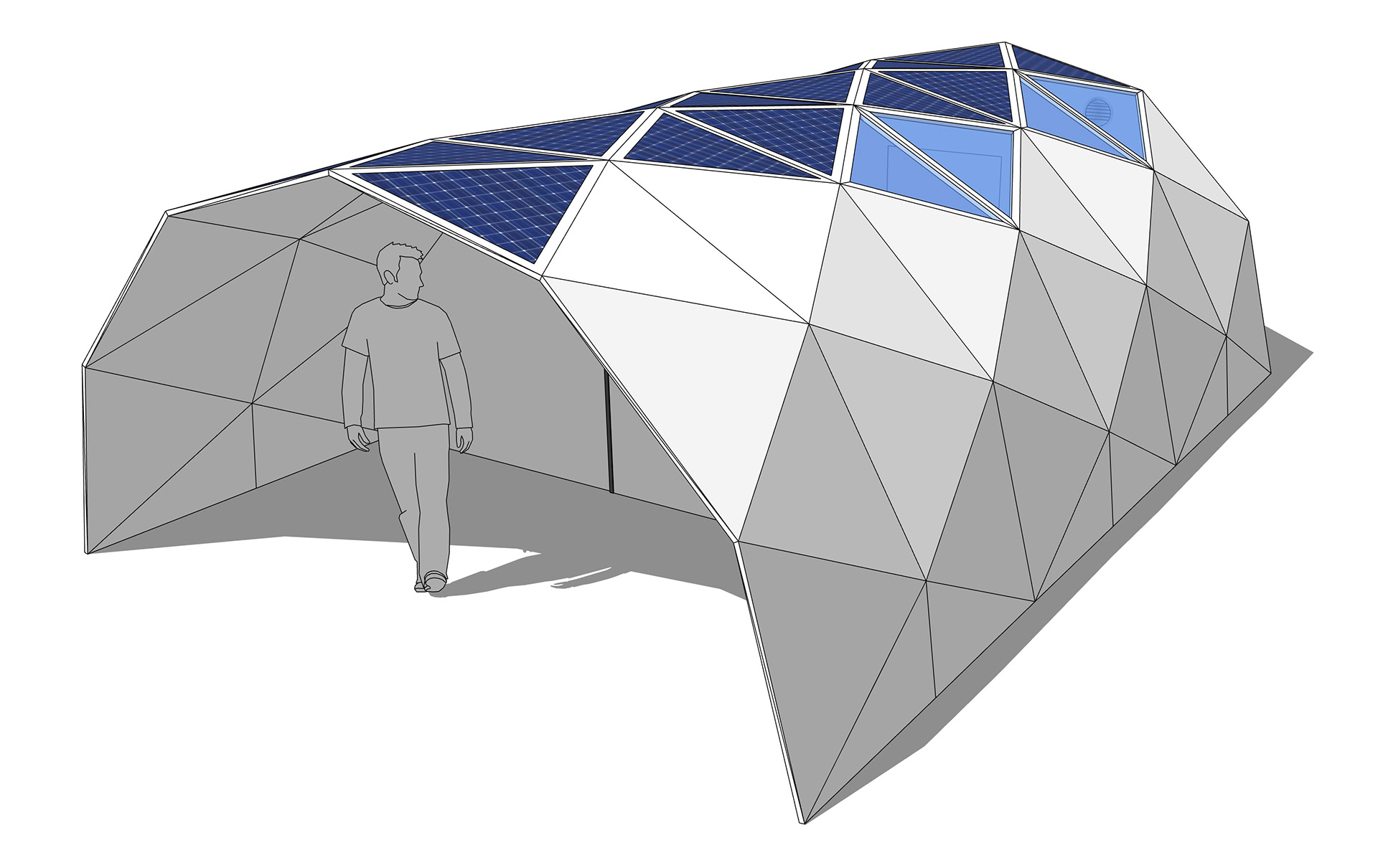

![Completed Structure](https://cdn.myportfolio.com/569a7c15-b2da-44c6-bdde-1e316b587cae/e04eac23-7f47-48c6-91db-a11b419b48bd_rw_1920.jpg?h=e24dc864f2d68275dc26ab8bf87a5608)
