Parametric software with a graphical algorithm editor, is used to produce the design. By adjusting sliders, different shapes such as tunnel, saddle and cocoon shaped structures can be created.
Graphical Algorithm Editor
Graphical Algorithm Editor
Tunnel
Tunnel

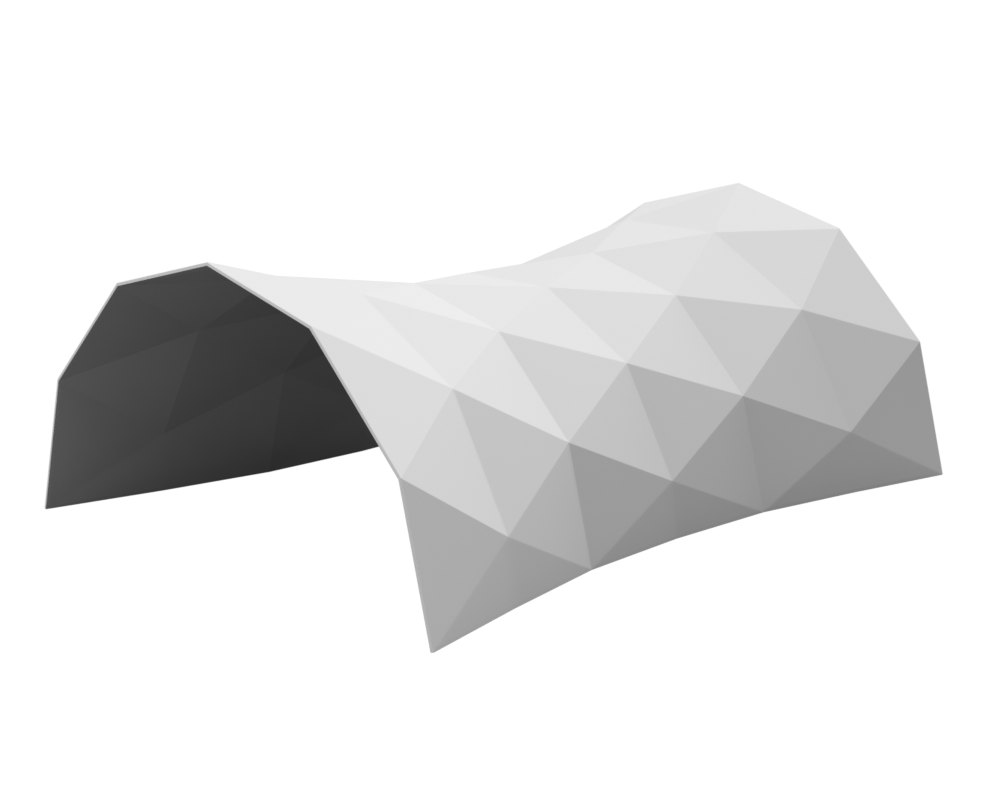

Saddle
Saddle

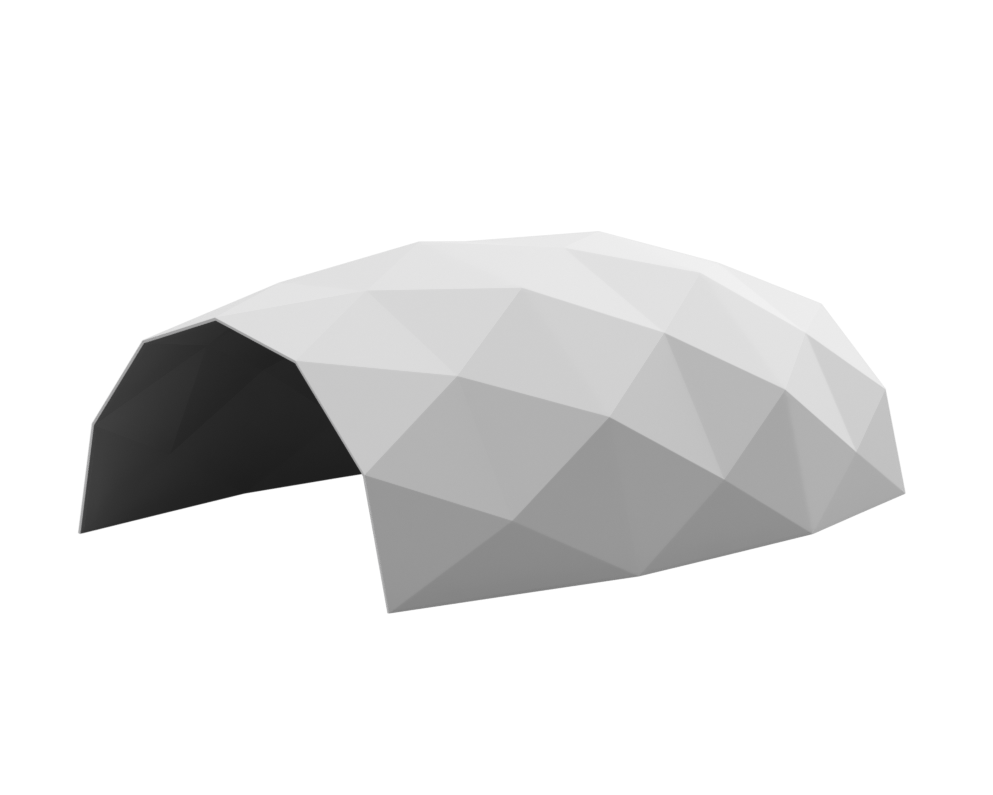

Cocoon
Cocoon
The frequency of panels used to form the arches can be adjusted creating a smoother curve and creating wider/higher spans whilst still allowing the folded structure to fit on a standard Euro pallet.

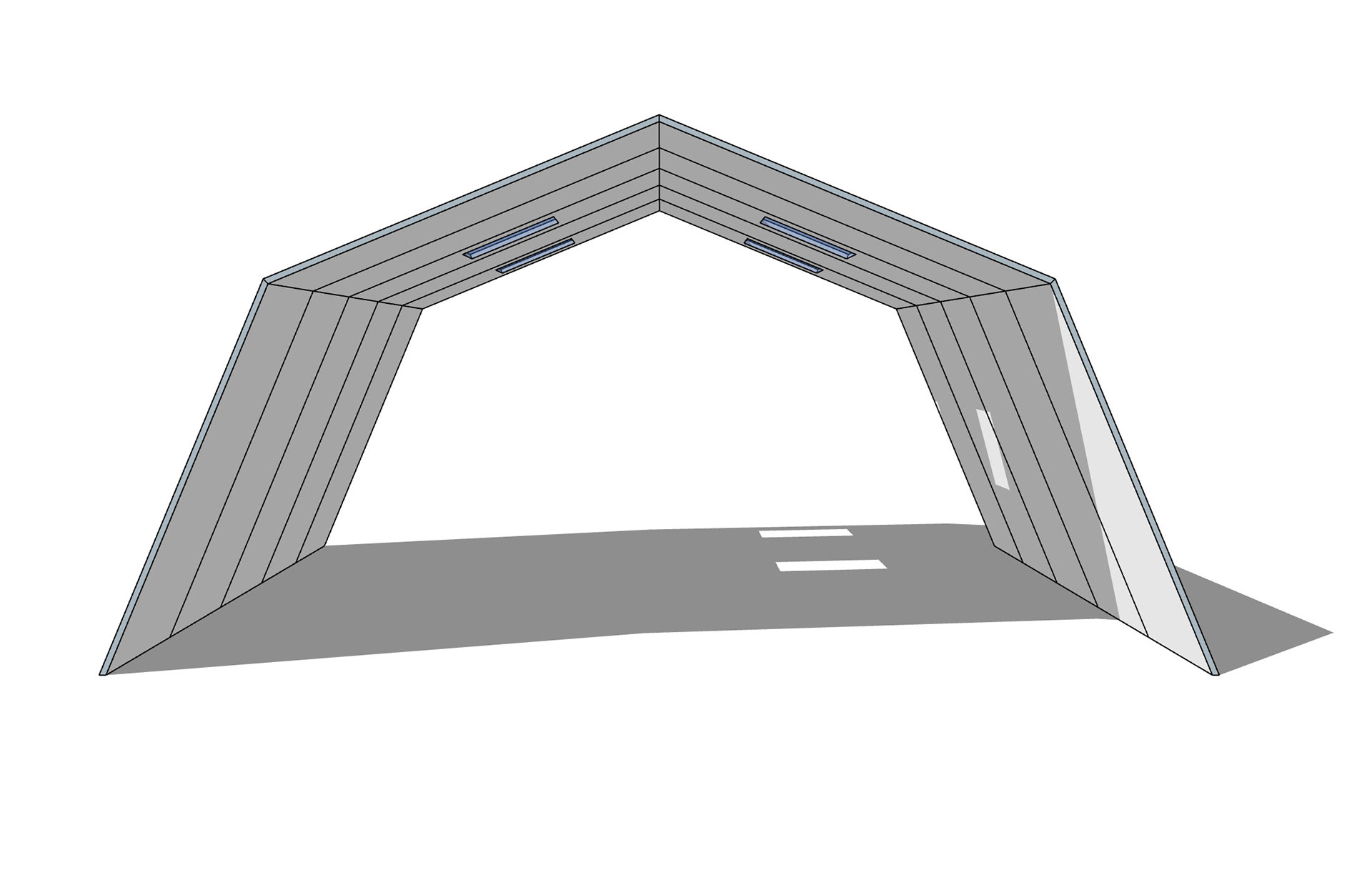

4 Panel Arch
4 Panel Arch
6 Panel Arch
6 Panel Arch

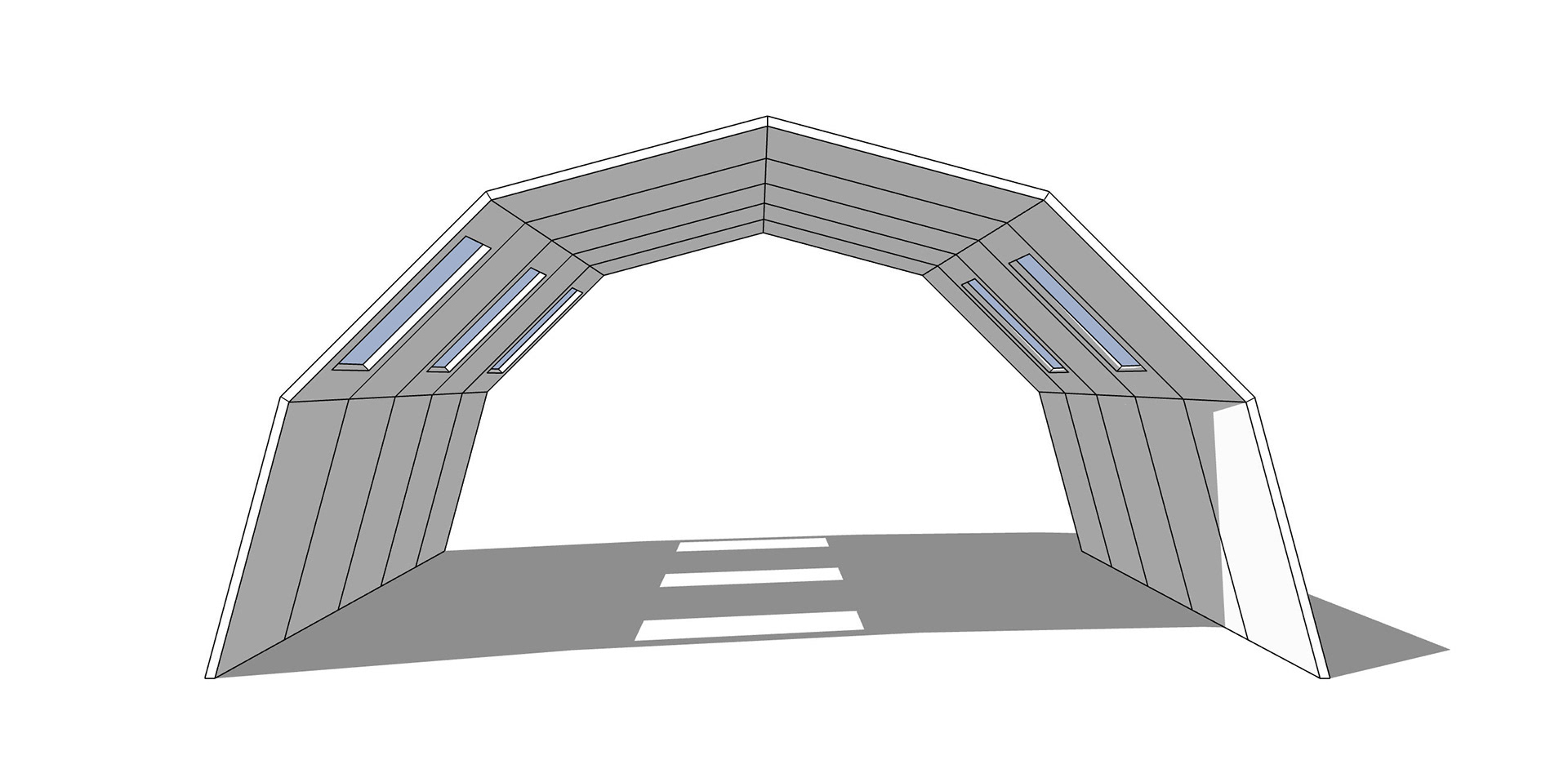

8 Panel Arch
8 Panel Arch
The shape of the panels can also be changed depending on requirements for use. ​​​​​​​
Rectangular Panels
Rectangular Panels
Square Panels
Square Panels
Triangular Panels
Triangular Panels
